Preparative µBondapak Columns

SKU: 186003969

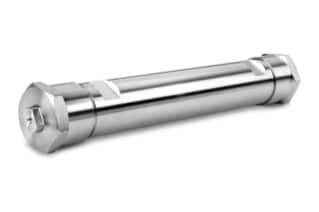

SunFire C18 OBD Prep Column, 100Å, 5 µm, 30 mm X 250 mm, 1/pk

SunFire C18 OBD Prep Column | 186003969


Streamline Purchasing with Customized Quotes

Streamline Purchasing with Customized Quotes

Shop on Waters.com and add items to your cart

Navigate to the Shopping Cart

Select Request a Quote to get your quote instantly


Product Description

SunFire C18 columns are used for general purpose method development at low pH. The C18 ligand is highly retentive, especially for basic compounds and it is ideally suited for purification and impurity profile assays.

Specifications

  • Chemistry

    C18

  • Separation Mode

    Reversed Phase

  • Particle Substrate

    Silica

  • pH Range Min

    2 pH

  • pH Range Max

    8 pH

  • Temperature Limits

    45 C

  • Maximum Pressure

    6000 psi (415 Bar)

  • Endcapped

    Yes

  • Silanol Activity

    Low

  • Particle Shape

    Spherical

  • Particle Size

    5 µm

  • Endfitting Type

    Waters

  • Pore Size

    100 Å

  • Format

    OBD Prep Column

  • Surface Area

    340

  • System

    HPLC Preparative

  • Technique

    LC, LC/MS

  • USP Classification

    L1

  • Inner Diameter

    30 mm

  • Length

    250 mm

  • Carbon Load

    16 %

  • UNSPSC

    41115709

  • Brand

    SunFire

  • Product Type

    Preparative Columns

  • Units per Package

    1 pk

Hazaradous Material This product contains hazardous material which requires special freight handling. Additional charges may apply.

Product Support

Documents

Documents



What do you want to do?

What do you want to do?

Related Products

Back To Top Back To Top

SunFire C18 OBD Prep Column, 100Å, 5 µm, 30 mm X 250 mm, 1/pk

SunFire Columns are regarded as top-of-the-line bonded C18 Silica HPLC Columns. These column series came to fruition at Waters after extensive research to provide industry-leading levels of chromatographic performance, representing the best in particle and bonding expertise. The SunFire Column series are known for their excellent low-pH stability, high chromatographic efficiency, and superior peak shapes for charged analytes species. Compared to many traditional silica-based HPLC column brands, the SunFire C18 OBD Prep Column offers superior low pH stability that enhances column lifetime.

The sorbent used in the SunFire C18 OBD Prep Column uses new bonding and end-capping technologies that result in superior peak shape performance. This enables you to achieve symmetrical peaks for improved resolution and quantitation of acidic, neutral, and basic compounds at low and intermediate pH ranges. In addition to this, the proprietary, state-of-the-art silica synthesis, bonding, end-capping, and packing technologies used in the manufacturing of the SunFire C18 OBD Prep Column, result in lab equipment that is highly efficient and offers greater sensitivity.

The combination of OBD Column design with efficient SunFire Particles eliminates the need for any time-consuming method reoptimization. This unique combination leads to equivalent chromatographic performance when scaling up from pilot analytical to preparative columns. With the SunFire C18 Column, you will get symmetrical peaks for improved resolution and quantitation of acidic, neutral, and basic compounds at low and intermediate pH ranges.

Browse through our brochure, or check out our website to find various products that are compatible with the SunFire C18 Column, including guards, vials, elution plates. The website enables you to shop for lab equipment, as well as to reach out with any queries you may have. You can direct these queries and concerns to a member of our staff, located in one of our numerous offices located globally.

You might also be interested in SunFire C18 VanGuard Cartridge, 100Å, 3.5 µm, 2.1 mm X 5 mm, 3/pk, SunFire C18 VanGuard Cartridges are used to extend analytical column lifetime and performance by removing particulate contamination from the mobile phase stream. This cartridge is optimized to protect all 2.1 mm and 3.0 mm I.D. SunFire C18 analytical columns containing 3.5 µm sorbent particles.

What Are The Operating Limitations Of The SunFire C18 OBD Prep Column?

The SunFire C18 OBD Prep Column can operate easily between an extensive pH range of 2 to 8 and up to a maximum of 6000psi (or 415 Bar) pressure. However, you should note that working at the extremes of pressures, pH and/or temperatures will result in shorter column lifetimes.
