Oasis PRiME HLB Cartridges and DisQuE QuEChERS Products for UPLC-MS/MS Mycotoxin Analysis in Cereal Grains

Oasis PRiME HLB Cartridges and DisQuE QuEChERS Products for UPLC-MS/MS Mycotoxin Analysis in Cereal Grains
  • Michael S. Young
  • Kim Van Tran
  • Waters Corporation
Download PDF
Wheat field

This is an Application Brief and does not contain a detailed Experimental section.

Abstract

Here we describe a simple modified QuEChERS extraction protocol and simple clean-up strategies suitable for multiresidue mycotoxins analysis by UPLC-MS/MS.

Introduction

Goal

A simple modified QuEChERS extraction protocol and simple clean-up strategies suitable for multiresidue mycotoxins analysis by UPLC-MS/MS.

Background

Mycotoxins are toxic compounds produced by molds or other fungi that can grow on foodstuffs intended for domestic animal or human consumption. Ingestion of food containing only  parts-per-billion (µg/kg) concentration of some mycotoxins may cause severe illness. Therefore, sensitive and reliable analytical methods are required to determine mycotoxins in foods and feeds. Cereal grains, such as wheat, rice, and maize are important examples of these types of foods. Many of the natural constituents of these grains are potential interferences for LC-MS/MS analysis. Although proteins and starches are removed during the QuEChERS extraction by partition, precipitation, and centrifugation, significant amounts of fat and lecithins (phospholipids) are co-extracted along with the target mycotoxins.

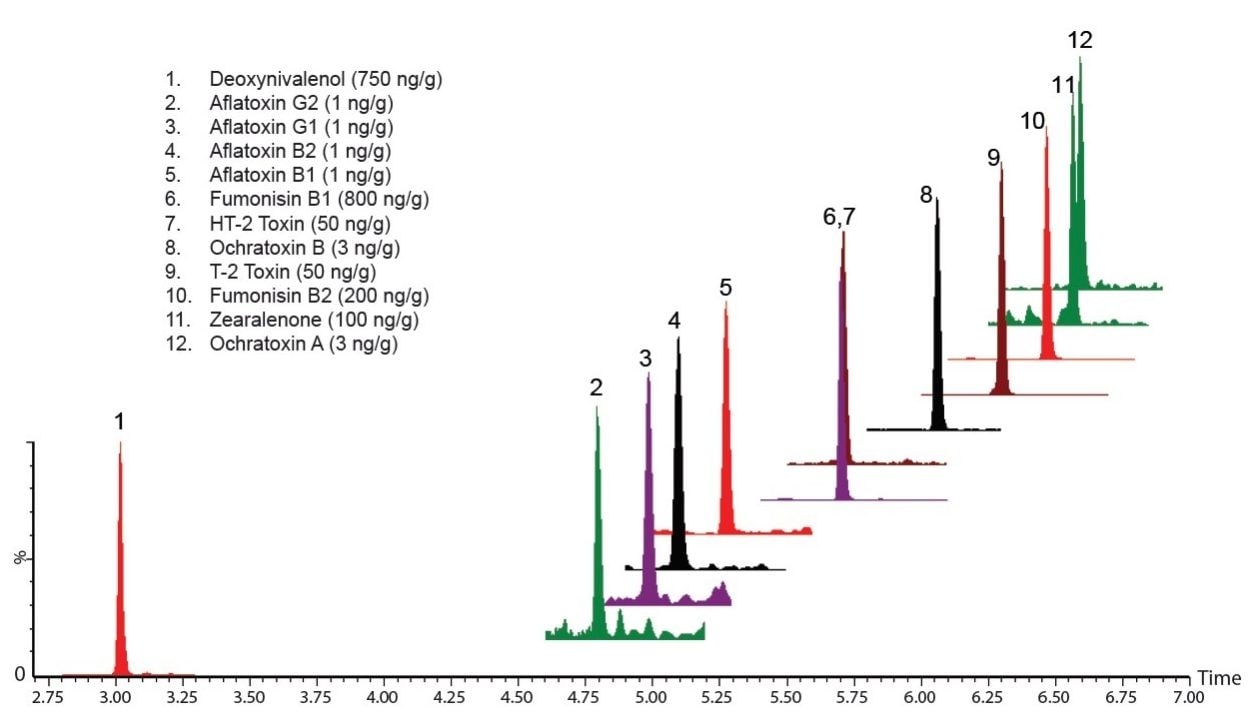

Figure 1. Ion chromatograms obtained from a wheat flour sample fortified with 12 mycotoxins at the indicated levels.
Figure 1. Ion chromatograms obtained from a wheat flour sample fortified with 12 mycotoxins at the indicated levels.

The presence of these co-extracted substances can lead to interference in the LC-MS analysis, contamination of the analytical column and other components of the UPLC system, and contamination of the mass-spectrometer itself. Fats have traditionally been removed from QuEChERS extracts using cumbersome hexane defatting steps or by  the use of reversed-phase sorbents such as C18– silica. Although these techniques may be effective for fat removal, neither of these procedures  removes phosholipids.

The solution

Pass-through clean-up with Oasis® PRiME HLB cartridge for fat and phospholipid removal and dSPE (dispersive SPE) for removal of residual sugars and other polars. The recoveries of the mycotoxins are not compromised using these cleanup protocols.

Experimental

QuEChERS Extraction. Cereal grain flours were purchased at a local grocery store. A 2 g sample was weighed into a 50 mL centrifuge tube. 10 mL water and 10 mL 10:90 formic acid/acetonitrile were added and the sample was placed on automated shaker for 1 hour. Then, QuEChERS salts (contents of DisQuE pouch for CEN, pn 186006813) were added and the tube was shaken vigorously by hand for 1 minute. After centrifugation (3200 rcf for 5 minutes), a portion of the supernatant was taken for cleanup.

Clean-up. An Oasis PRiME HLB Cartridge (3 cc, 150 mg, pn 186008717) was mounted on a pre-cleaned vacuum manifold set to minimal vacuum (approx 2 psi). No cartridge conditioning is required or was performed. A 0.4 mL aliquot of the supernatant was passed-through the Oasis PRiME Cartridge and discarded. Then a 1 mL portion of the supernatant was passed through the cartridge and collected. The collected extract was then transferred to a  2 mL dSPE tube (pn 186008081) containing a mixture of sorbents . After centrifugation (1 minute at 13500 rcf), a 500 µL aliquot was taken, evaporated under a gentle nitrogen stream, and reconstituted in 250 µL of 15:85  acetonitrile/water.

Instrumental conditions

UPLC-MS/MS conditions are presented below. Table 1 presents the target compound list, MRM transitions, and mass-spectral conditions used for this study. Six point matrix-matched calibration curves run bracketing the target  levels showed good linearity (R2>0.99) for all compounds.

UPLC conditions

LC system:

ACQUITY UPLC I-Class (FTN)

Column:

CORTECS UPLC T3, 1.6 µm, 100 x 2.1 mm

Mobile phase:

A: 0.5% formic acid, 5 mM ammonium formate in water

B: 0.5% formic acid, 5 mM ammonium formate in 50:50 methanol/acetonitrile

Injection vol.:

10 μL

Column temp.:

30 °C

Needle wash and Sample manager purge:

1% formic acid, 10 mm citric acid in 1:1:1:1 water/methanol/isopropanol/acetonitrile

Seal wash:

10:90 methanol:water

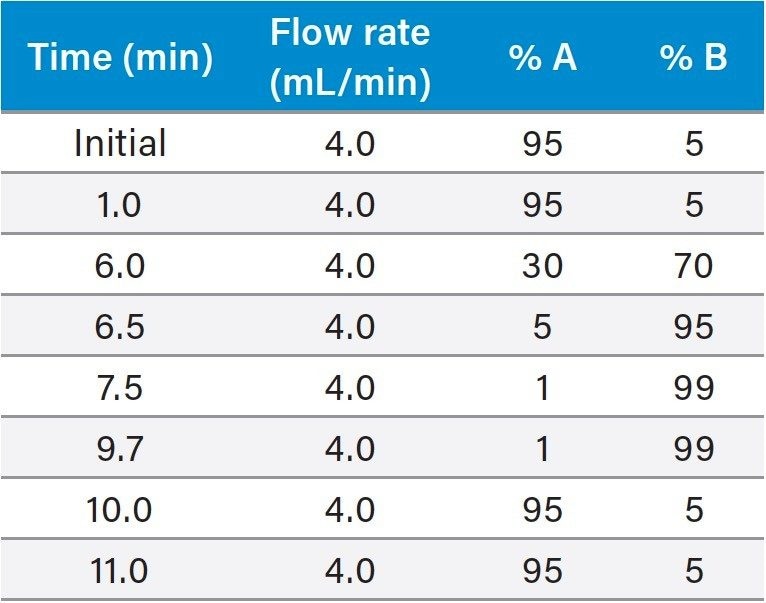

Gradient

Gradient

MS conditions

Mass spectrometer:

Xevo TQ-S micro

Mode:

Positive ion electrospray

Source temp.:

150 °C

Desolvation temp.:

500 °C

Desolvation gas flow:

1000 L/Hr

Cone gas flow:

30 L/Hr

Data management:

MassLynx v4.1

Results and Discussion

Recoveries were measured for 12 mycotoxins at a low and high level. The high level was consistent with EU maximum permitted levels for aflatoxins, fumonisins, ochratoxin A, and zearalenone, and recommended levels for T2 and HT2 toxins (see Figure 1). The low level was 1/4 X the high level (0.25 ng/g for aflatoxins). In wheat flour, total method recoveries for both the low and high level spiked samples were better than 80% for all target compounds except for zearalenone (73%). Similar performance was observed for whole rice and maize flours.

Very little of any recovery loss for any of the toxins was caused by the pass-through or dSPE clean-up steps. Figure 1 shows ion chromatograms obtained from a sample spiked at 0.25 ng/g (ppb) in wheat flour. Figure 2 shows chromatograms that illustrate the effectiveness of the  Oasis PRiME Cartridge for phosholipid removal; greater than 95% of phospholipids and greater than 80% of total fats were removed using  the Oasis PRiME Cartridge.

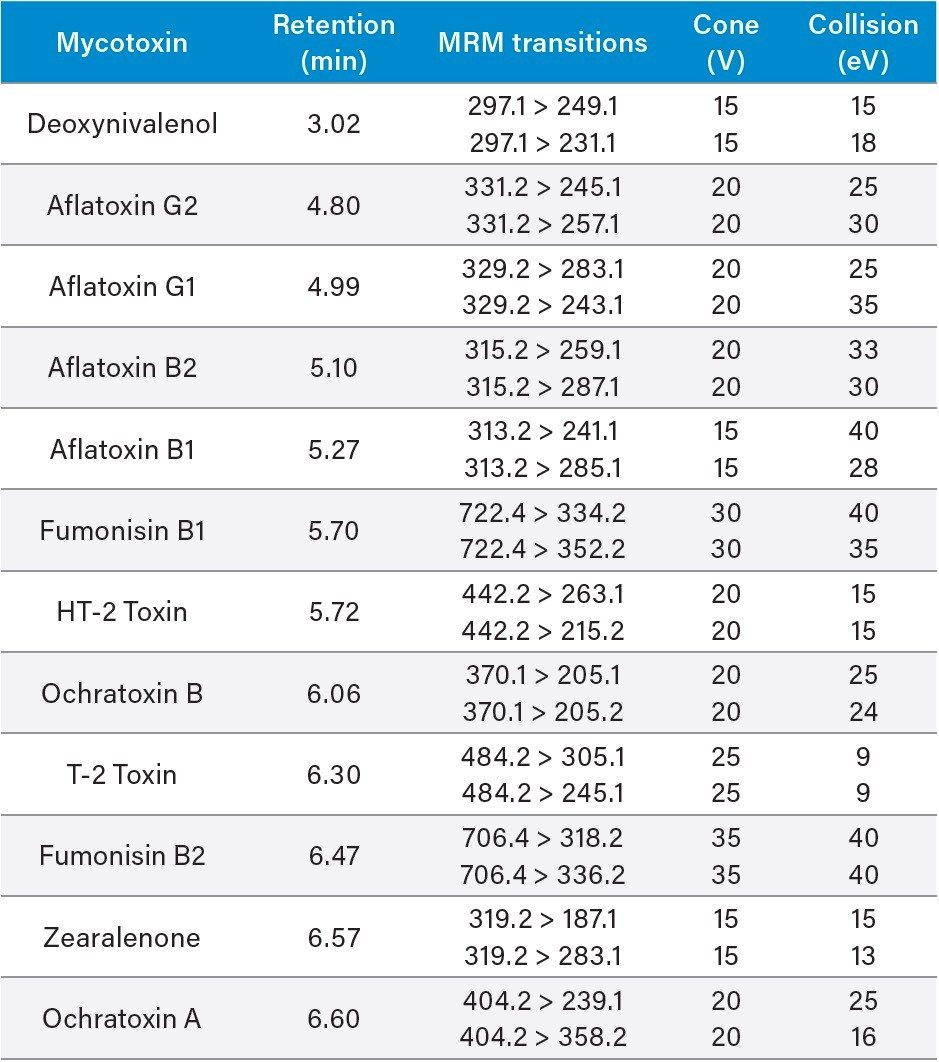

Table 1. Target compounds, MRM transitions, and mass spectral conditions used for this study (note: For HT-2 and T-2 toxins the ammonium adducts were used for MRMs; to enhance this response, ammonium formate was incorporated in the mobile phase).
Table 1. Target compounds, MRM transitions, and mass spectral conditions used for this study (note: For HT-2 and T-2 toxins the ammonium adducts were used for MRMs; to enhance this response, ammonium formate was incorporated in the mobile phase).

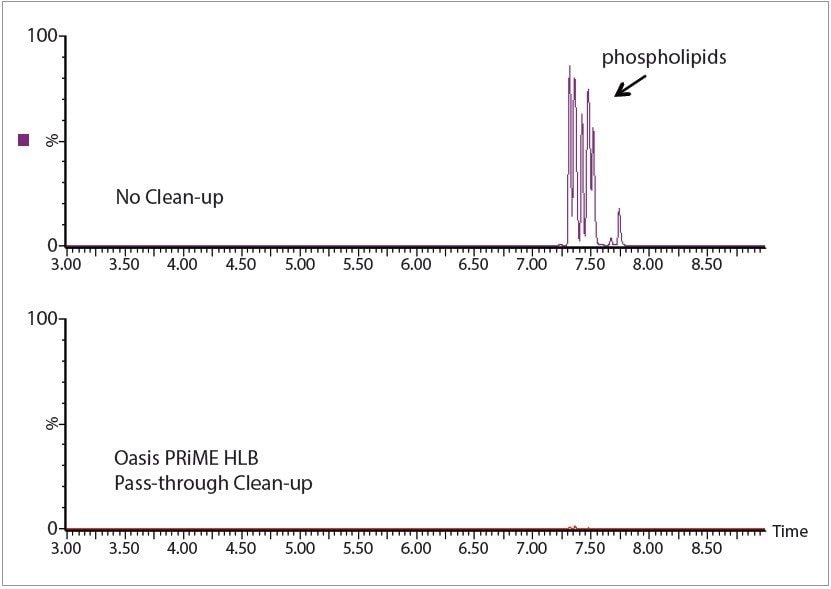

Figure 2. Pass-through clean-up using Oasis PRiME HLB; nearly complete removal of phospholipids from QuEChERS extract of wheat flour.
Figure 2. Pass-through clean-up using Oasis PRiME HLB; nearly complete removal of phospholipids from QuEChERS extract of wheat flour.

Conclusion

  • An improved QuEChERS extraction procedure was shown to be effective for simultaneous extraction of 12 mycotoxins from wheat, rice, and maize flours
  • Pass-through cleanup with an Oasis PRiME HLB Cartridge effectively removed greater than 80% of fats and greater than 95% of phospholipids from the QuEChERS extract
  • Polar co-extractables were effectively removed from the QuEChERS extract using a mixed sorbent dSPE clean-up
  • LOQ acceptable for meeting EU regulations was achieved using the sample preparation protocol prior to LC-MS/MS analysis using Xevo TQ-S micro Mass Spectrometer
