• Application Note

Analysis of 5-Fluorouracil in Plasma for Clinical Research

Analysis of 5-Fluorouracil in Plasma for Clinical Research

  • Stephen Balloch
  • Lisa J. Calton
  • Gareth Hammond
  • Waters Corporation

For research use only. Not for use in diagnostic procedures.


Here we describe a clinical research method using liquid-liquid extraction of plasma with 5-fluorouracil-13C15N2 internal standard.


  • Analytical selectivity afforded by chromatography and highly selective mass detection
  • Wide (100 fold) dynamic range
  • Simple and inexpensive sample preparation using low sample volumes
  • Speed of analysis


5-fluorouracil is an anti-cancer agent which acts by interfering with the synthesis of deoxyribonucleic acid (DNA) and, to a lesser extent, inhibits the formation of ribonucleic acid (RNA). Since there is a high degree of inter-individual variability for its metabolism,1 an analytically sensitive and selective measurement procedure may aid in pharmacokinetic and pharmacodynamic clinical research studies.

Here we describe a clinical research method using liquid-liquid extraction of plasma with 5-fluorouracil-13C15N2 internal standard. Chromatography was achieved within 3 minutes using a Waters ACQUITY UPLC HSS PFP Column (2.1 x 100 mm, 1.8 µm) on a ACQUITY UPLC I-Class System followed by detection on a Xevo TQD Mass Spectrometer (Figure 1).

Figure 1. The ACQUITY UPLC I-Class System and Xevo TQD.


Sample preparation: 5-fluorouracil certified reference standard and its stable labeled internal standard (13C15N2) were purchased from Toronto Research Chemicals (Toronto, Ontario, Canada). Calibrators were prepared in a surrogate matrix of pooled plasma purchased from Golden West Biologicals (Temecula, CA, USA). The calibration range for 5-fluorouracil was 20–2000 ng/mL. QC materials were prepared independently using this same pooled plasma at 40, 350, 750, and 1500 ng/mL.

Sample extraction: To 50 µL of sample, 5 µL of 10 µg/mL internal standard (ISTD) in methanol was added and then vortex mixed  for 30 seconds. 500 µL of ethyl acetate containing 0.1% formic acid by volume was then added, then vortex mixed for 30 seconds and centrifuged for 2 minutes at 16,100 g. A 400 µL aliquot of supernatant was evaporated to dryness under nitrogen at 40 °C. The sample was reconstituted using 75 µL 0.1% formic acid in water prior to analysis on the UPLC-MS/MS system.

LC conditions




30 μL



Mobile phase A:


Mobile phase B:


Needle wash solvent:

80% aqueous methanol + 0.1% formic acid

Purge solvent:

Mobile phase A

Seal wash:

20% aqueous methanol

Column temp.:

35 °C

Injection volume:

20 μL

Flow rate:

0.40 mL/min

Run time:

3.0 minutes (3.5 minutes injection to injection)

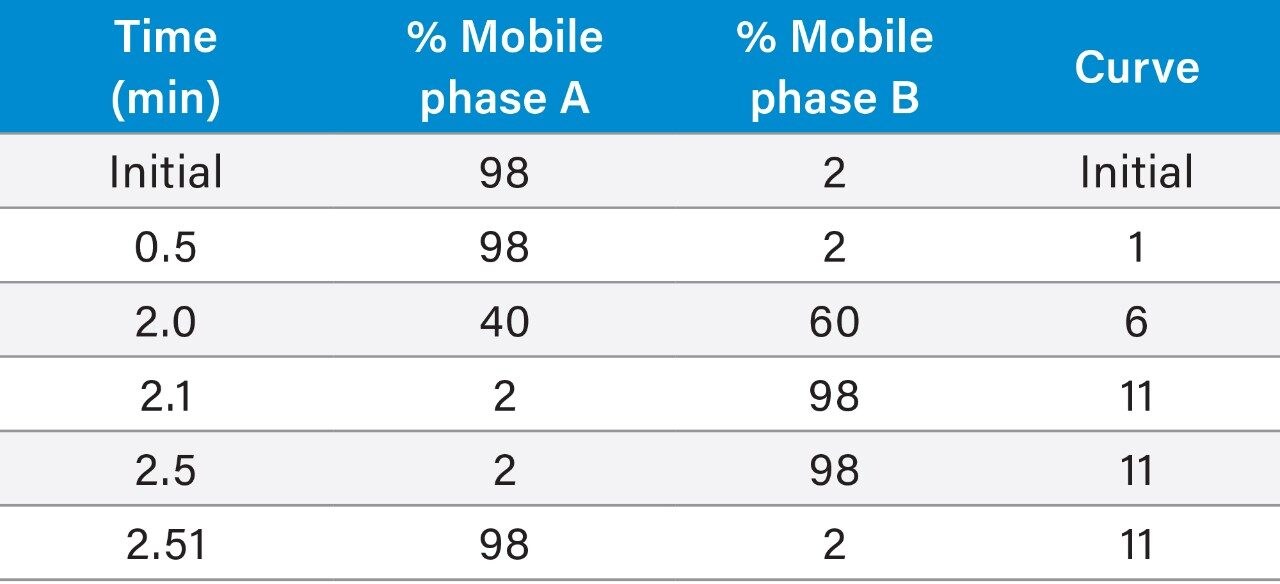

Table 1. Chromatographic elution timetable.

MS conditions


Xevo TQD


MS1 (0.7 FWHM) MS2 (0.7 FWHM)

Acquisition mode:

Multiple Reaction Monitoring (MRM) (See Table 2 for details)


ESI negative ionization


3.0 kV

Source temp.:


Desolvation temp.:

450 °C

Dwell time:

0.05 seconds (5-fluorouracil), 0.015 seconds (ISTD)

Inter-scan delay:

0.02 seconds

Inter-channel delay:

0.01 seconds

Data management

MassLynx v4.1 Software with TargetLynx Application Manager

Method conditions

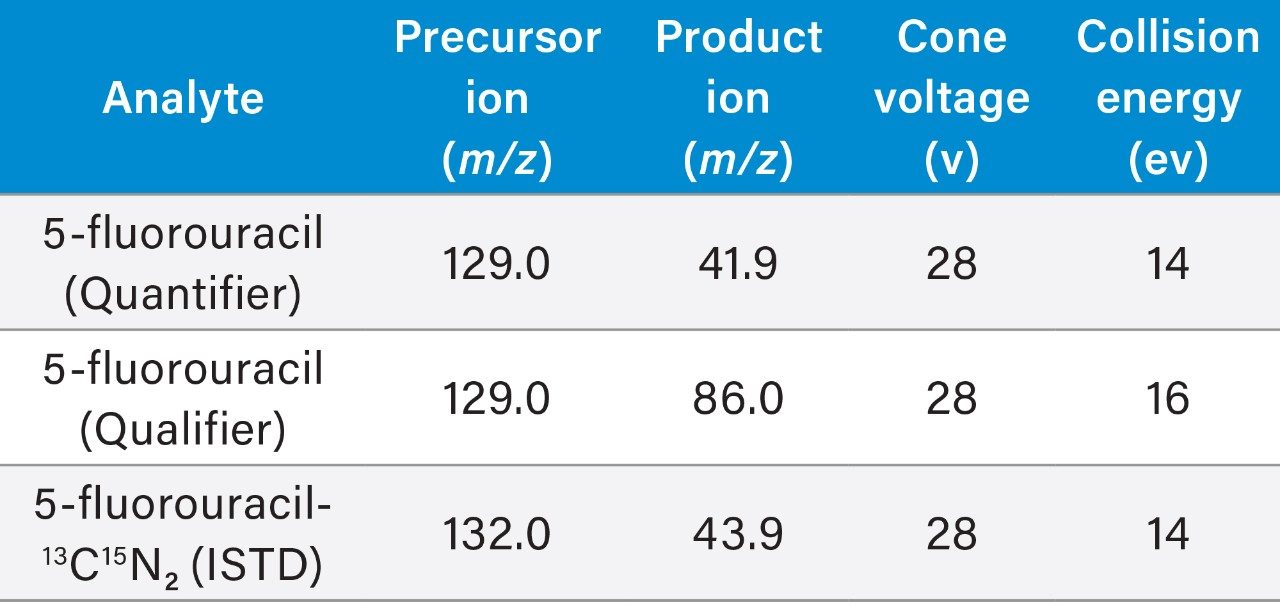

Table 2. Guideline MRM parameters for 5-fluorouracil and its internal standard, 5-fluorouracil-13C15N2 used in this study.

Results and Discussion

Under these chromatographic conditions, 5-fluorouracil is separated from an isobaric interference (at approximately 1.1 minutes) extracted from plasma. The retention time of 5-fluorouracil is approximately 1.18 minutes.

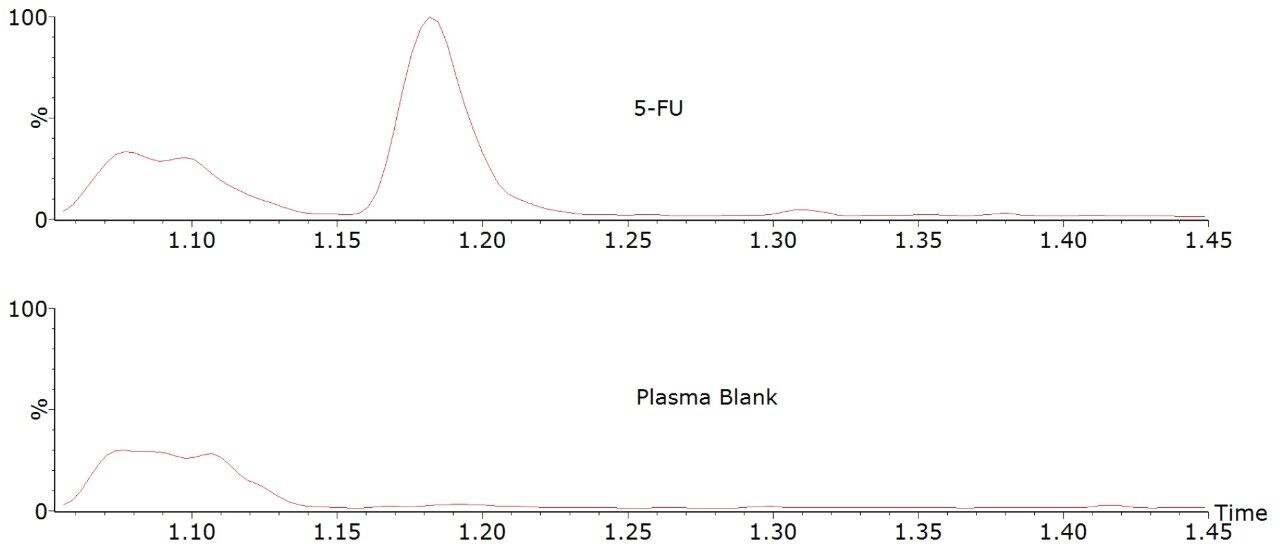

Figure 2. Example chromatograms of 5-FU (20 ng/mL) and a plasma blank.

No system carryover was observed following analysis of plasma samples with 5-fluorouracil levels of up to 10,000 ng/mL.

Analytical sensitivity investigations indicate that quantification (<20% RSD, <15% bias) at 7.5 ng/mL for 5-fluorouracil is achievable.

Precision experiments were performed, extracting and quantifying five replicates of four concentrations of QC material over 5 separate days (n=25). Repeatability was assessed by analysing five replicates at each QC level. Table 3 presents the results of these experiments, where total precision and repeatability at the four concentrations assessed was ≤9.0% RSD for 5-fluorouracil.

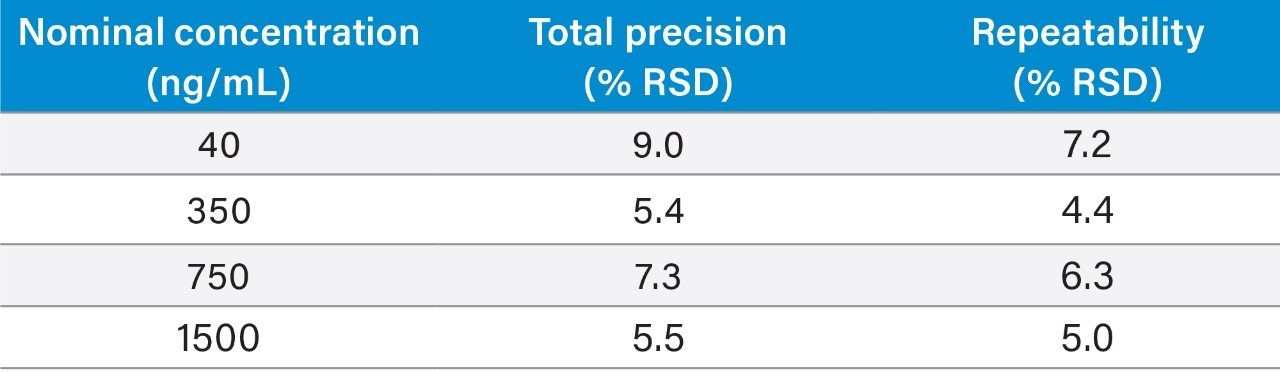

Table 3. Total precision and repeatability for analysis of 5-fluorouracil.

The method was shown to be linear over the range of 14–2600 ng/mL when different ratios of high and low concentration pools of 5-fluorouracil were combined and analysed.

Matrix effects were evaluated at low (40 ng/mL) and high (1500 ng/mL) 5-fluorouracil concentrations in plasma (n=6). The matrix factor range was 0.62 to 0.69 (mean 0.66) for low concentrations compared with 0.46 to 0.75 (mean 0.65) for high concentrations. Use of an isotopically labeled 5-fluorouracil internal standard compensated for the observed matrix effects yielding matrix factor ranges of 0.94 to 0.98 (mean 0.96) and 0.96 to 1.05 (mean 1.02) for low and high concentrations, respectively.

Potential interference from endogenous compounds (albumin, bilirubin, cholesterol, triglycerides, and uric acid) and the exogenous material intralipid (20% emulsion) spiked at high concentrations was assessed by determining the recovery of 5-fluorouracil (n=3) from low and high pooled plasma samples (40 ng/mL and 1500 ng/mL). Recovery ranged from 90.5–110.6%. When assessing the effects of the presence of acetaminophen, fluconazole, 5,6-dihydro-5-fluorouracil, ketoconazole, itraconazole, methotrexate, phenytoin, posaconazole, uracil, and voriconazole, recovery ranged from 91.8–108.0%. A substance was deemed to interfere if a recovery range of 85%–115% was exceeded.


  • An analytically sensitive and selective clinical research method has been developed for the analysis of plasma 5-fluorouracil.
  • Using only 50 μL of sample with fast and inexpensive sample preparation, this analytical method provides sufficient analytical sensitivity to analyze low levels of 5-fluorouracil (20 ng/mL) with excellent precision performance.
  • The method has been demonstrated as linear with no observed system carryover. Matrix effects are adequately compensated for by the use of the internal standard.
  • The method may have utility in researching the pharmacokinetic and pharmacodynamic effects of 5-fluorouracil administration.


  1. Fakih MG, Fetterly G, Egorin MJ, Muindi JR, Espinoza-Delgado I, Zwiebel JA, Litwin A, Holleran JL, Wang K and Diasio RB. A Phase I, Pharmacokinetic and Pharmacodynamic Study of Two Schedules of Vorinostat in Combination with 5-fluorouracil and Leucovorin in Patients with Refractory Solid Tumors. Clin Cancer Res. 2010 Jul 15; 16(14):3786–94.

720006049, July 2017
