模块化系统
灵活的纯化解决方案,充分满足您的实验室要求
Empower软件的多功能性与沃特世色谱解决方案的简便性相结合,开发出一套灵活的纯化解决方案,充分满足您的实验室需求。
沃特世提供分析型到半制备型纯化解决方案,您无需使用完整制备型系统的高级功能,即可有效纯化有限数量的样品。沃特世的模块化系统可以安装在工作台的另一端,化学家需要时可随时使用,是纯化微克级至毫克级化合物的理想选择。
配置沃特世全系列模块化溶剂输送系统,这是一款理想的系统解决方案,输送流速高达300 mL/min,可满足您独特的应用需求。
概述
- 使用稳定可靠的系统放心执行无人值守操作,轻松管理日益增加的工作量需求(从每天几个样品到几百个样品)
- 利用灵活的配置,从分析级色谱轻松放大为制备级色谱
- 使用Empower软件进行数据采集、实时监测和全面结果管理,只需点击几下鼠标即可获得纯化结果
- 根据您的通量和规模要求配置手动或自动进样的系统
- 溶剂输送功能相当灵活,可适应高达300 mL/min的流速
- 借助简单易操作的控制台和省时的软件功能,在手动或自动进样时管理您的溶剂和样品
- 使用沃特世专有的最佳柱床密度(OBD)色谱柱获得更高的上样量和出众的色谱柱稳定性
推荐用途:更好地纯化目标化合物,范围涵盖微克级到毫克级。
典型色谱柱内径典型色谱柱内径
|
流速上限流速上限
|
溶剂管理溶剂管理
|
上样量上样量
|
|---|---|---|---|
|
2.0~19.0 mm |
22.5 mL/min |
1525 EF |
µg~10 mg以上 |
|
4.6~30.0 mm |
50.0 mL/min |
2535四元梯度模块 |
mg~g |
|
4.6~50.0 mm |
150.0 mL/min |
2545四元梯度模块 |
mg~g |
|
7.8~75.0 mm |
300.0 mL/min |
2555四元梯度模块 |
mg~10 g以上 |
利用Empower的集成功能,掌控收集过程并快速获得结果

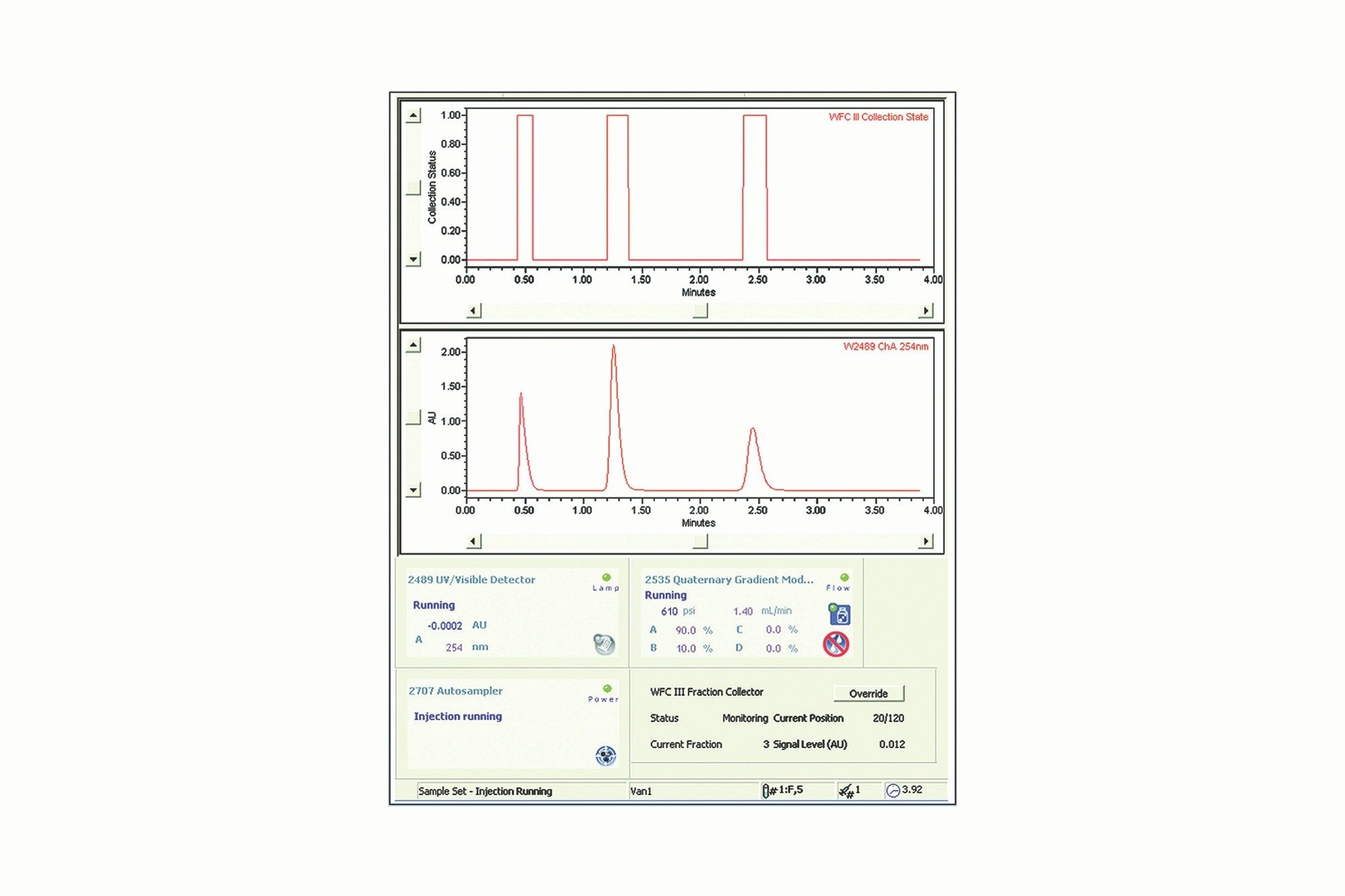

使用Empower软件通过仪器界面控制沃特世馏分收集器IV。加载仪器控制软件(ICS)后,该界面可与现有的Empower控制组件无缝集成。收集器控制软件可帮助您轻松配置收集容器和设置收集程序。接收来自馏分收集器的实时反馈,获取有关收集过程当前状态以及所收集馏分位置的信息,即时获得结果。
高效、轻松地执行各种收集技术
借助简单易操作的收集控制界面,您可以轻松地执行各种收集技术:
- 通过时间切片收集所有结果
- 按时间收集运行的特定区段
- 收集触发馏分之间的洗脱液
- 使用基于阈值、斜率或斜率和阈值的检测器触发器进行收集
当大体积样品需要重复进样并将馏分收集到同一容器中时,只需选中收集方案中的复选框即可执行此任务。对于低流速操作,您可以避免在连续馏分之间打开和关闭分流阀,从而消除宝贵的样品区段被转移至废液的风险。

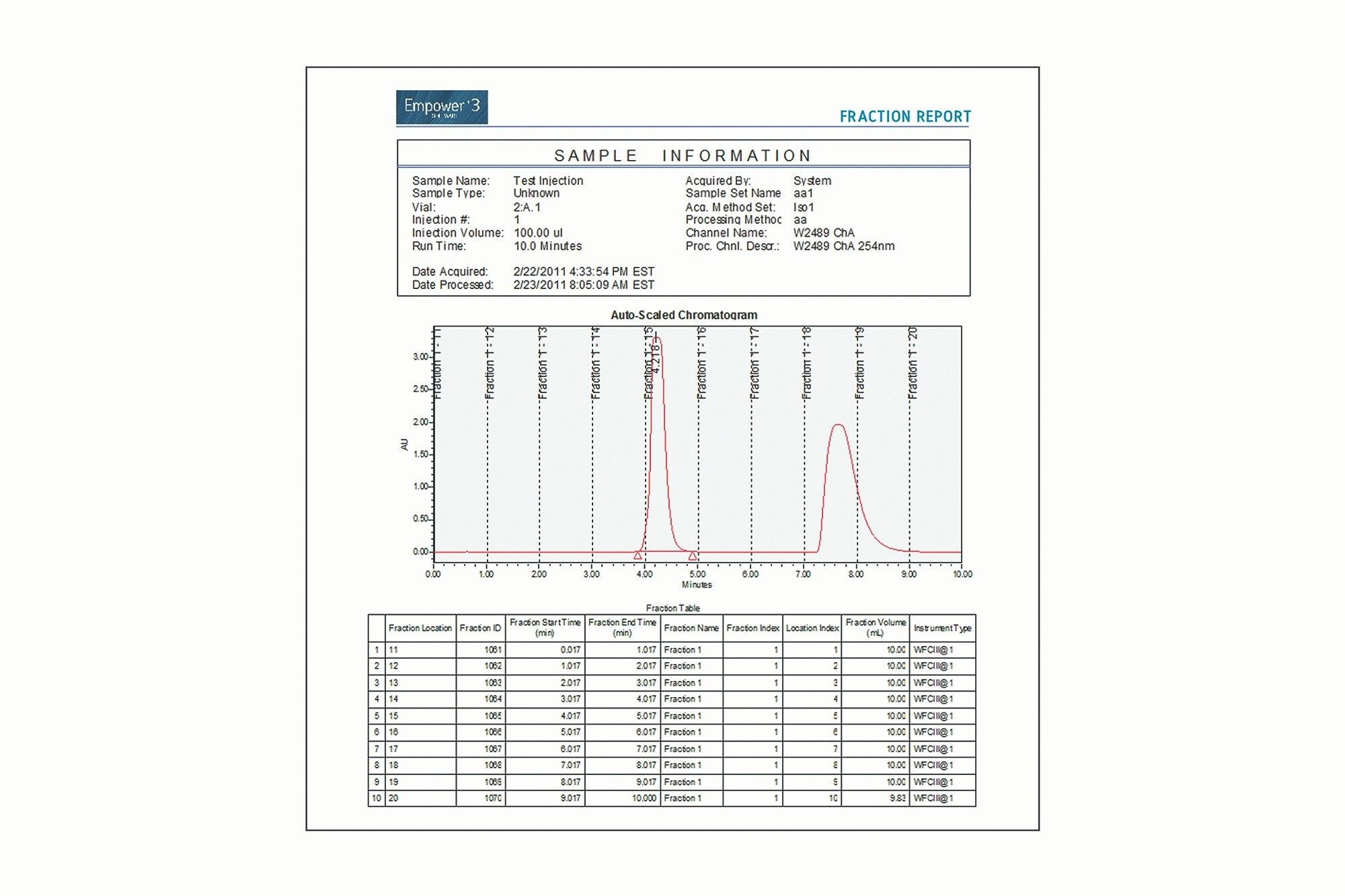

馏分收集信息内置于Empower软件数据集中,并以综合报告的形式提供。您可以查看电子报告,并将其保存到数据库中,以备后续检索。
集成馏分收集和检测功能,获得可靠结果
沃特世馏分收集器IV紧凑、灵活且易于使用,可以单独使用,也可以搭配沃特世样品纯化解决方案使用,提高样品收集能力,助您高效收集馏分。它专为小型和大型工作环境而设计,可以轻松集成到多种沃特世系统配置中。
集成沃特世检测器,简化您的分析级和半制备级纯化工作流程,满足您的分离规模要求。我们的检测技术具有出色的灵敏度、稳定性和易用性,可满足您的实验室需求,助您攻克难题。从以下产品中选择适合您应用的检测器:
- 紫外/可见(UV/Vis)吸光度检测器
- 光电二极管阵列(PDA)检测器
资源
文档
支持
相关信息
Modular Systems FAQs
How flexible are the modular systems in terms of flow rate and column size?
Waters modular purification systems offer a wide range of flow rates and column dimensions, allowing users to tailor the setup to their specific purification needs. Flow rate capabilities range from 22.5 mL/min to 300 mL/min, supported by a selection of solvent delivery modules, including the 1525 EF, 2535, 2545, and 2555 Quaternary Gradient Modules. Column compatibility spans from 2.0 mm to 75.0 mm internal diameter, covering purification from microgram to tens-of-gram scales.
Can I scale up from analytical to preparative workflows using the same system?
Yes, Waters modular systems are designed for seamless scale-up from analytical to preparative workflows. The same system platform supports a wide range of column sizes and flow rates, enabling users to move from microgram-level screening to milligram- or gram-scale purification without needing to change core components. Solvent delivery modules and injection options are configurable to match the evolving scale of your purification tasks. Empower Software ensures continuity in method control and data handling across all scales, simplifying workflow transitions.
What fraction collection options are available, and how are they controlled?
Waters modular systems use the Fraction Collector IV, a compact and versatile tool designed for both small- and large-scale purification workflows. It supports a wide range of collection techniques, including time slicing, detector-triggered collection based on signal threshold or slope, and consecutive fraction pooling. The collector is fully integrated with Empower Software, which provides a user-friendly interface for configuring collection parameters, viewing real-time collection status, and embedding fraction data directly into the acquisition dataset.
